COFDM Video Transmitter with 20W Output Power Long Range Digital Transmitter

Brand Name : Ding Shen

Model Number : DS-HDT20W

Place of Origin : china

MOQ : 1set

Price : >=1 Sets $4900

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 5-10 working days

Packaging Details : 220*140*80mm

Modulation : COFDM 2K QPSK

Frequency : 300-900Mhz or other frequency customized

Video input : HDMI/SDI; CVBS

A/V Interface : HDMI/SDI; CVBS

Contact Now

Vehicle mounted COFDM Video Transmitter with 20W Output Power Long Range Digital Transmitter

COFDM Digital Transmitter Feature:

COFDM modulation, Stable transmission
MPEG-4/H.264 video compression, DVD video quality
Strong casing with built-in two cooling fans
Mobile and NLOS transmission
Great security by encryption of AES 128 bits
Low system latency
Modular design, compact structure, OEM design
Can be customized to add additional features, such as HD/HD-SDI, data port, Ehernet and etc..

Introduction:

This is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.265 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with three cooling fans. Be safety with AES128/256bits. Work well in fast-moving transmission and obstruction environment.

Specifications:

Modulation	CODFM
DC input	DC12V-DC14V
Working Current	≤4.7A@DC12V
Constellation	QPSK,16QAM,64QAM (optional)
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Carrier	2K
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Frequency	138-4400MHz (available)
RF power output	10-20W
A/V interface	RCA
RF interface	N type
Flatness	≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic	1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER	<2.0E-4
Video Compression	H.265/H.264/MPEG-4
Resolution	1080P/720P
Video Rate	6Mbps
Work environment	-30~70°
Dimension	22014080MM
Weight	2.3kg

COFDM Video Transmitter with 20W Output Power Long Range Digital Transmitter

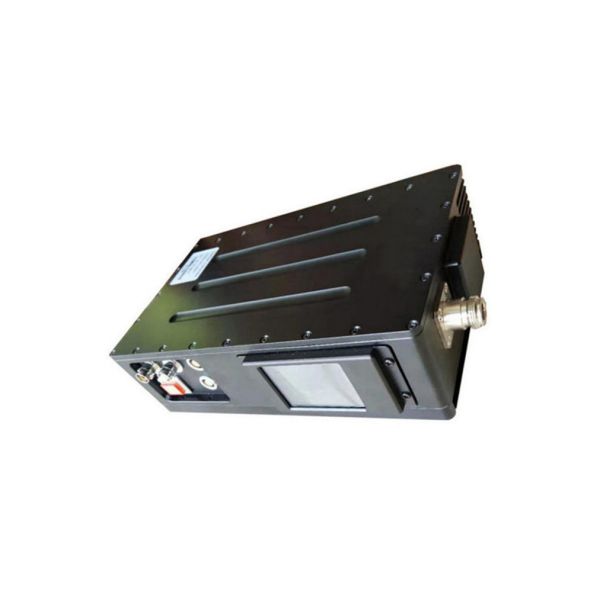

COFDM Video Transmitter with 20W Output Power Long Range Digital Transmitter Images
